Huixian Xinda Textile Machinery Parts Co., Ltd. provides weaving machine rubber leather parts Loom R B409R Buffer 295 leather ring, also known as leather ring. B409R is the export model of weaving machine leather ring, 295 buffer is the domestic name, B409 Buffer,Leather Ring,Loom Rubber Parts, its material is rubber+nylon cloth (or canvas), and the hardware accessories used are M5 * 22 rivets; B409R buffer (295 leather rings) refers to an inner length of 295mm, and the width of the Loom buffer body of 38mm * thickness of 5.3mm is the same size as the leather ring.
The leather pillow on the B409R leather ring has raised slots on both sides to prevent buffering during shuttle stopping, so the leather ring is also known as the "buffer ring". The leather ring used in weaving machines is significantly different from that used in spinning machines. Spinning machine leather rings do not have leather pillows, and their external dimensions (inner length and thickness) are much smaller than those of weaving machines. Spinning machine leather rings are used for power transmission of rollers.
Types of buffer: B401R (255), B402R (260), B404R (266), B406R (266), B407R (277) , B408R (275), B409R (295), B410R (285), the figures in brackets are characterized by the Pisphere.

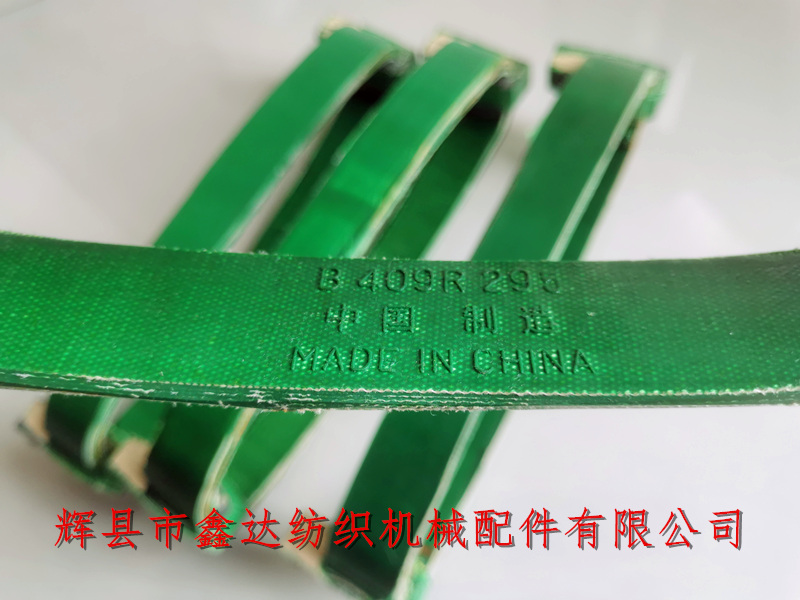

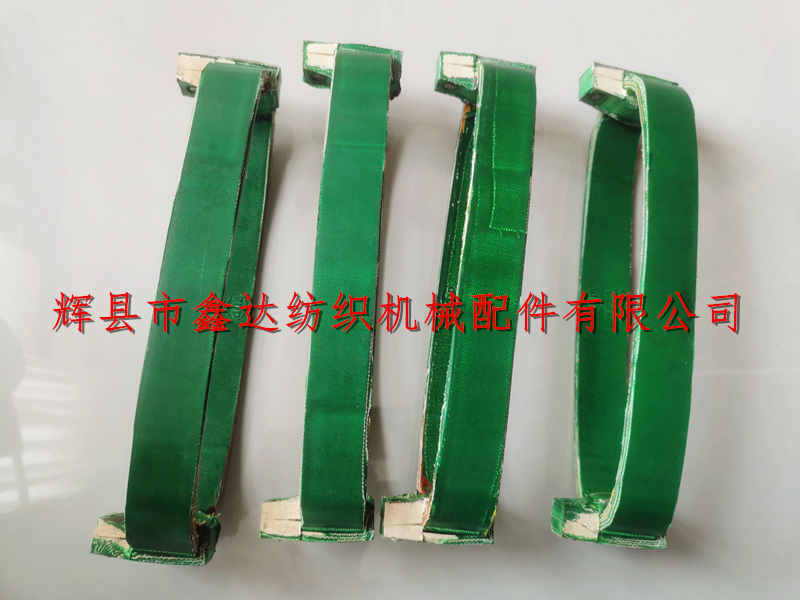

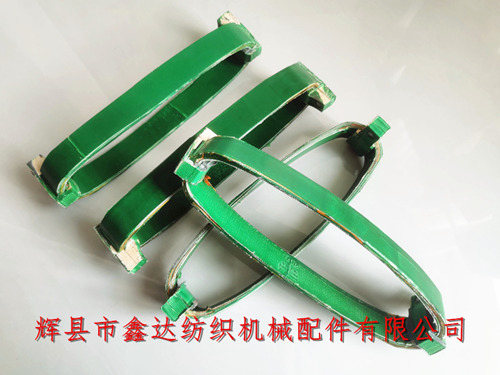

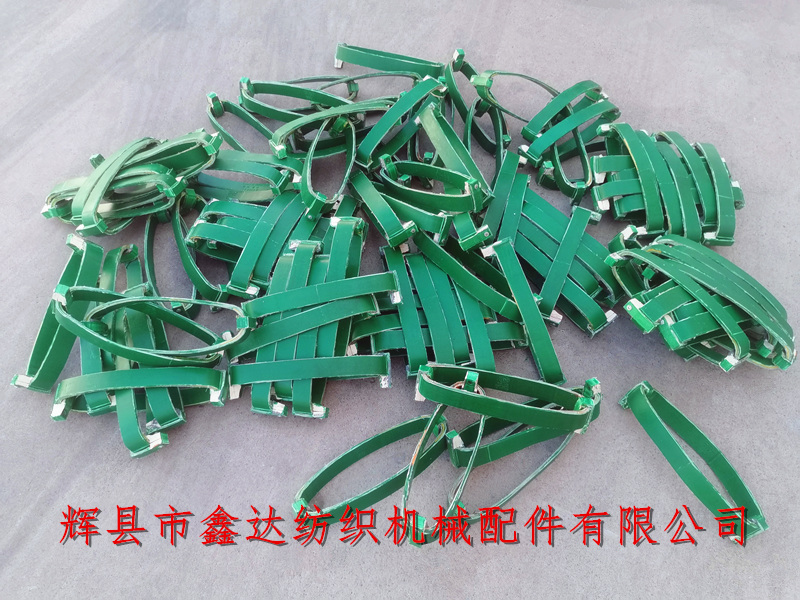

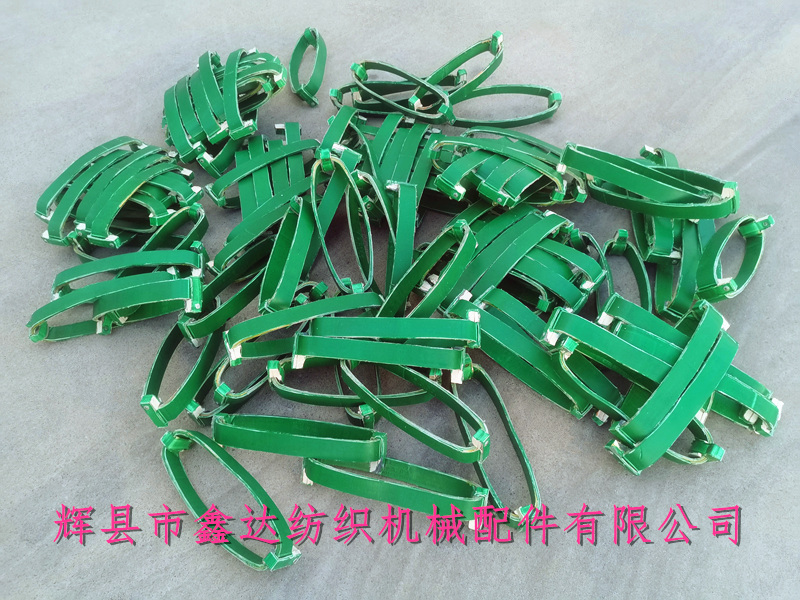

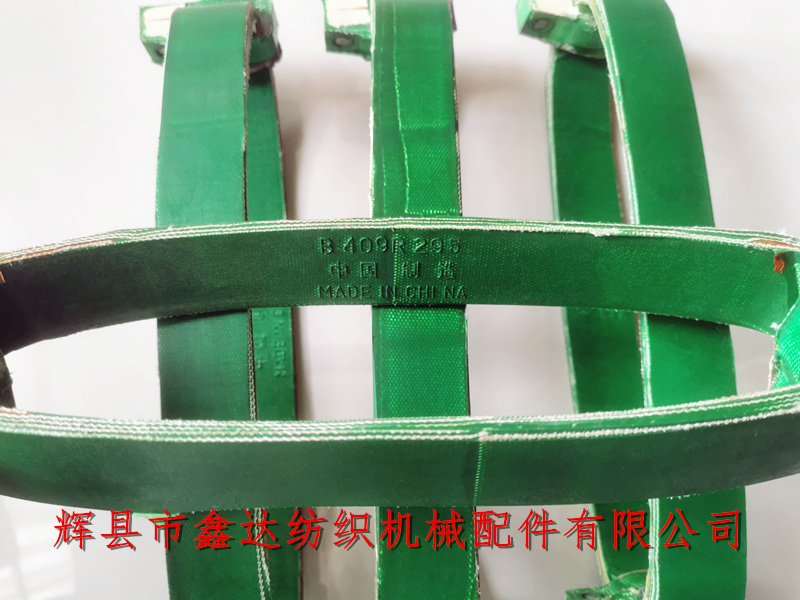

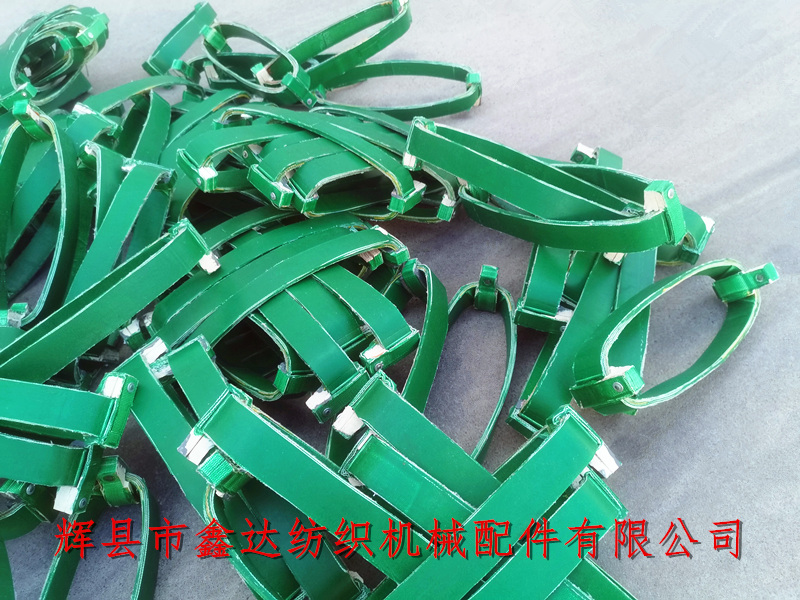

The above two pictures show the model and specifications marked on the inside of the B409R leather ring. The following picture is a multi angle picture of the shuttle textile accessory - B409R leather ring, in green color, with a quantity of 10 per bundle.
The 295 type leather ring is mainly used for weaving woven fabrics with a width of 100 inches (2.5 meters) or 110 inches (2.8 meters) on shuttle looms. The machine models are mainly 1515K and GA615, and each loom uses 2 pieces, with 1 piece on each end of the reed frame.
The packaging for weaving machine leather accessories -295 weaving machine leather rings is: 100 pieces/bag, with a single weight of 0.29 kilograms. Generally, this type of rubber product (Loom Rubber B409R Buffer 295 Leather Ring) is packaged in woven bags, but if there are special requirements, wooden boxes can be used for packaging.
Weaving enterprises, weaving processing factories, and trade export groups in various cities can contact our company if they need to purchase 1515K textile accessories, 295 loom buffer, 298 leather rings, weaving machine leather parts B409R-295 weaving machine leather rings, and other textile rubber accessories with shuttle weaving machines. We are dedicated to providing you with services.
